Imagine a robotic gripper that’s not only easy to create but also incredibly affordable—this is the essence of [XYZAiden]’s innovative design for a flexible robotic gripper. Although this concept has been around for a few years, it has become even more accessible today, thanks in large part to advances in 3D printing technology. This gripper operates using just a single motor and doesn’t require any complicated mechanical assembly, making it an ideal project for hobbyists and tech enthusiasts alike.

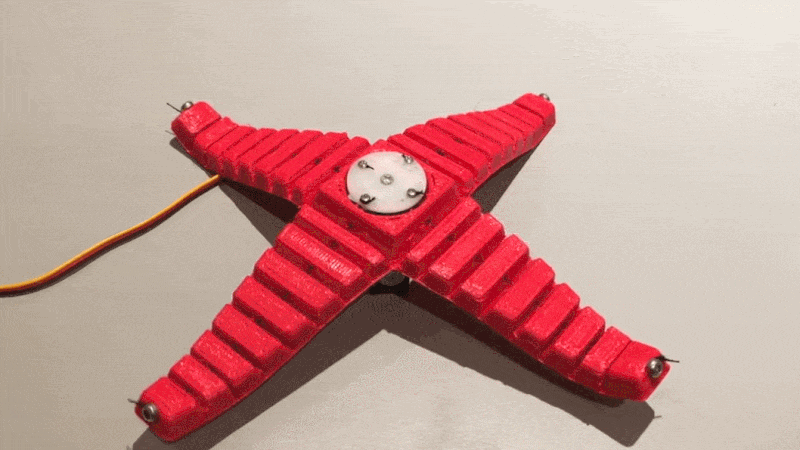

The design features four arms that print as a cohesive unit. It utilizes a cable-driven mechanism powered by a single metal-geared servo. Each arm incorporates a nylon string that, when the servo rotates, gets pulled inward, causing the arms to curl together and form a grip. The ingenious aspect of this design is that releasing the grip simply involves relaxing the cables; the arms naturally open up when not under tension.
However, it's important to note that while this design is simple, it does have its limitations. The servo and cable setup operates at a mechanical disadvantage, which means the gripping strength is not particularly strong. Nevertheless, for handling lightweight and irregularly shaped objects, this could be seen as an advantage rather than a drawback.
One of the standout features of this robotic gripper is its low cost and ease of construction. If you have access to a 3D printer and can make the servo rotate, you can likely find most of the necessary components in a typical junk bin. This makes it an excellent choice for DIY enthusiasts looking to explore robotics without breaking the bank.
There are countless variations of DIY robotic gripper designs available. For instance, consider the "jamming" bean-bag style gripper, which impressively grips irregularly shaped items with high strength while avoiding damage (check it out here). Another fascinating approach utilizes grippy measuring tape to achieve remarkable dexterity—this design can even pick fruit and change light bulbs with surprising finesse (see it here).
So, what do you think? Are you inspired to create your own robotic gripper or explore other unique designs? Share your thoughts and experiences in the comments!
